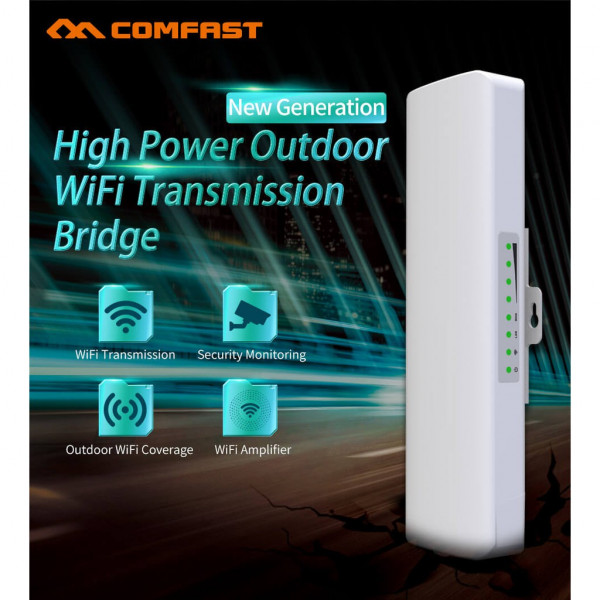

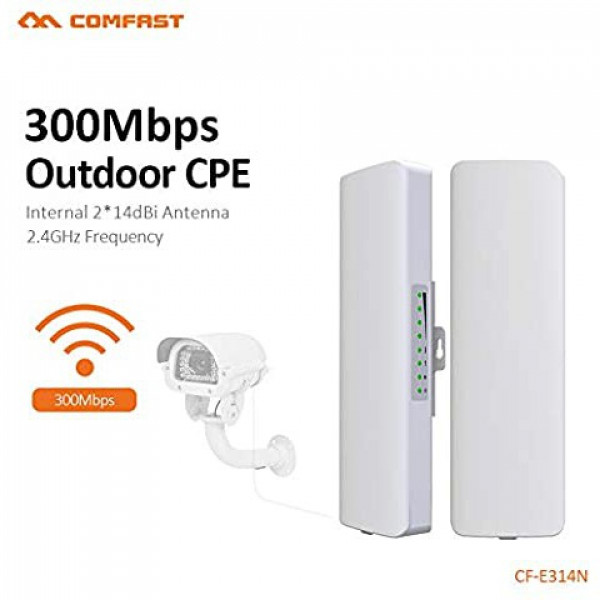

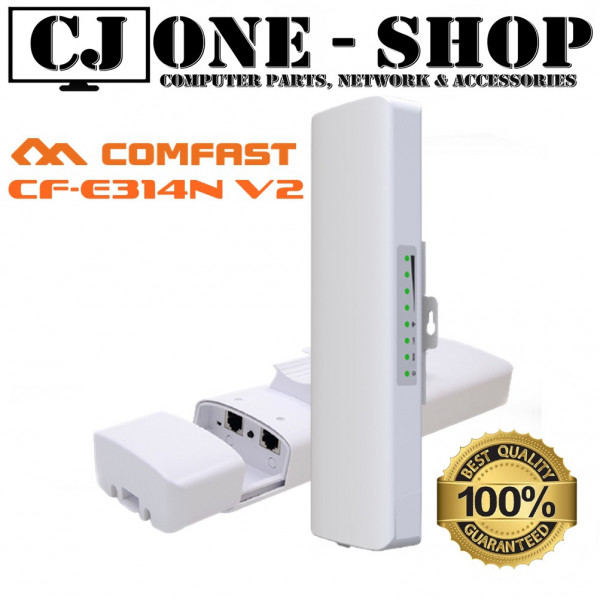

COMFAST CF-E314N V2 300Mbps Wireless Outdoor CPE Bridge

1. With 2*14dBi antennas, long-distance transmission;

2. Super anti-jamming and multi-path effect capabilities, air interface speed up to 300Mbps;

3. Standard 100M Ethernet interface;

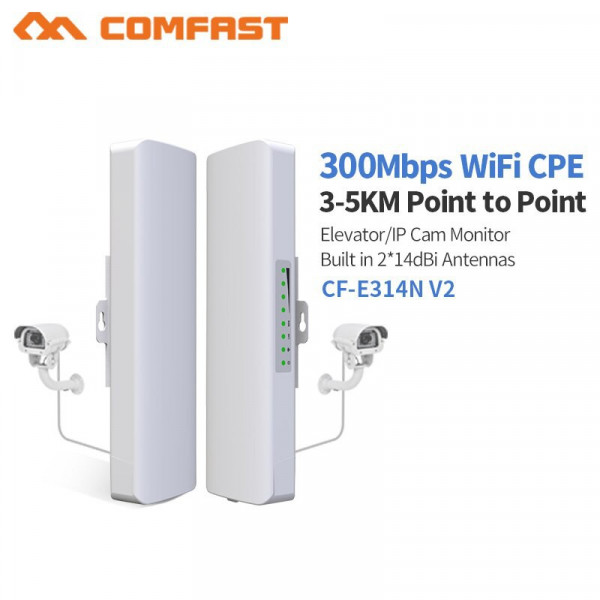

4. Support point-to-point (PTP) and The point-to-multipoint (PTMP) network architecture;

5. All-round automatic sweep function can automatically scan and select the best channel according to the surrounding wireless environment;

6. With bi-directional adaptive modulation capability, it automatically adjusts the radio link quality, in turn, optimizing the spectrum utilization to solve the signal attenuation.

Model Name: CF-E314N V2

Hardware Specification

Chipset: Qualcomm QCA9531 650Mhz, Industrial Grade CPU;

DDR: 64MB;

Flash: 8MB;

Power Amplifer Chipset: SE2576L;

Antenna: Built-in 2*14dBi Antenna

Wireless Standard: IEEE802.11b/g/n

RF Parameters

Output Power (Max): 500mW (27dBm);

Receiving Sensitivity (Max): -96dBm;



Frequency:802.11b/g/n:2.3GHz-2.7GHz

Transmission Rate

11b: 1, 2, 5.5, 11Mbps;

11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps;

11n: MCS0-MCS15 (20MHz&40MHz Analog Bandwidth);

20MHz: 144.4Mbps

40MHz: 300Mbps

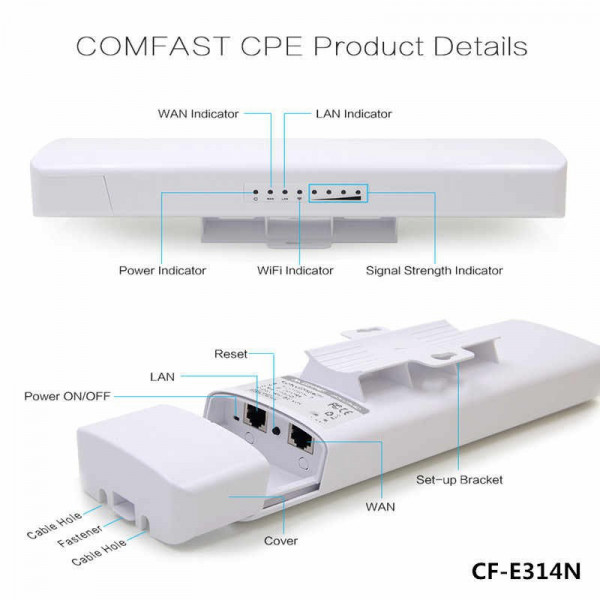

Physical Ports

1* 10/100Mbps WAN RJ45 Ethernet Port;

1* 10/100Mbps LAN RJ45 Ethernet Port;

1* POE Output Slide Switch;

1* RESET Button



Indicator

8* Indicators:Power/WAN/LAN/WiFi/Signal Strength

Power Adapter: 48V POE Power Adapter

Power Consumption(Max) <8W



Physical Features

Size: 262*80*53MM; Weight: 0.32KG
